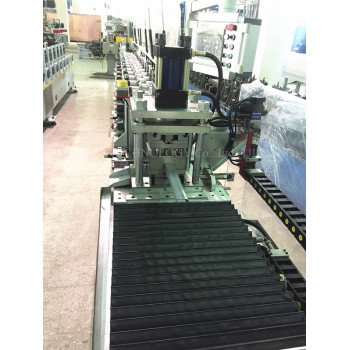

2"/3" C Profile Roll Forming Machine
- group name
- Garage Door Profile Machine
- Min Order
- 1 piece
- Nearest port for product export
- SHANGHAI, NINGBO
- Delivery clauses under the trade mode
- FOB, CIF
- Acceptable payment methods
- T/T, L/C
- Export mode
- Export through agents
- update time
- Fri, 09 May 2025 21:16:43 GMT
Packging & Delivery
-
Min Order1 piece
Briefing
2"/3" C profile for sectional & industrial door
Detailed
Profile Thickness | 1.5-2.0mm |
|---|---|
Requirements | Dimensional tolerances: +/- 1mm, +/- 1º angle Bow: 1.5mm Camber: 1.5mm Twist: 1.0º |
Working Speed | 10 meter/Min with punching |
Technical Process | Decoiler → Guided Feeding → Roll Forming → Punching → Cutting to Length (Serve fly shear cutting) → Collection Table |
Bearing Pedestal | 1) Nodular Cast Iron 2) Milling the Centre 3) Black Finish |
Bearing | C & U |
Rollers | 1) Hardness Surface: GCr 15 2) Hardness Surface: HRC58℃-62℃ 3) Chromate Treatment |
VFD | SIEMENS OR SCHEIDER |
PLC | SIEMENS |
Collection Table | Normally 2 meter |
